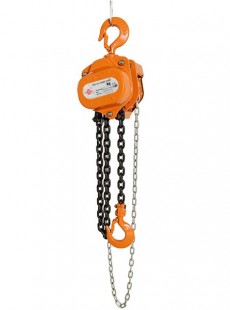

CK Chain Hoist

CK chain hoist is improved on the basis of CB chain hoist, the appearance is slightly different, making it more flexible to use. And to improve the accessories, not only are the parts more durable, but also reduce the cost, making the price of CK chain hoist more competitive than CB chain hoist.

Description

Technical Advantages

1. Use high-strength chain. The chain after special heat treatment is much stronger than ordinary chain.
2. Safety brake structure with double pawls. If one of the pawls fails in time, the other can maintain the normal and safe operation of the equipment.
3. The shape of the hook is convenient for operation. The widened opening hook makes it easier to operate.
4. Firm structure. The sturdy gearbox, four long shafts and four support rods reinforce the frame, which can well protect internal parts such as gears from damage, and have a significant anti-fall effect.
5. There are protrusions on both sides of the sprocket, which can prevent the misplacement of the hand zipper.
6. The friction plate that wipes the oil has a longer life.
7. There are sealed bearings in the lifting sprocket groove
8. The big plate has the function of preventing the loss of control when lifting the goods.

Model		HSZ-CK
Capacity	T	1	1.5	2	3	5	10
Standard lifting height	M	2.5	2.5	2.5	3	3	3
Load chain	No. of falls	1	1	1	1	1	4
Load chain	dimension	6*18	7.1*21	8*24	10*30	10*30	10*30
Force of full load		250	265	335	372	360	380
N.W/G.W	Kg	14.5/15	16.5/17	19.5/20.1	32/34	41.1/43.6	75.7/79.1
Dimension	A	149	176	176	231	249	463
	B	153	173	173	185	185	185
	C	29	35	35	39	49	54
	D	41	51	51	49	67	75
	H min	352	385	385	445	615	765
Additional weight per 1m lift	kg	0.8	1.1	1.4	2.2	3.8	8.8
